Skylights

Benefits

Why choose our skylight windows?

Getting the right amount of daylight is essential for our health and well-being; it improves our mood and fights Seasonal Affective Disorder (SAD). Skylights can deliver daylight deep into the room and significantly reduce artificial light lowering electricity costs.

Skylights are a perfect solution to getting the right amount of natural light into your home. We spend 90% of our time indoors, and we need the high levels of daylight.

Reduce electricity and increase daylight into your home

Reduce the need for electricity during the peak hours of the day. Instead, enjoy the natural light that makes colours appear brighter. Unlike vertical windows, which provide daylight to the parameter areas of your home, skylights provide balanced daylight into the center of your home, filling the room with natural light.

Protecting your home from the harshest weather conditions

Our skylights come with a pre-attached deck seal that provides a direct seal between the frame and roof for a leak-proof installation. The adhesive underlayment gives you peace of mind that your skylights won’t leak.

Easy installation for any type of home

Our flashing kits can be installed on several roofing materials, including shingles, metal, cedar shakes, Spanish tile, concrete, slate, and membranes.

Configurations

Skylight Designs

Browse our skylight window designs and discover the perfect fit for
your upcoming project.

Download Full Catalogue

Deck Mounted Skylights

Mounted directly to the roof with pre-installed deck seal, the3 patented layers of water protection and the low profile gives you greater energy efficiency.

Curb Mounted Skylights

Sits or caps over site-built curb (like the lid of a shoe box). With 3 patented layers of water protection and pre-attached curb gasket, this skylight provides an airtight and caulking-free seal to curb.

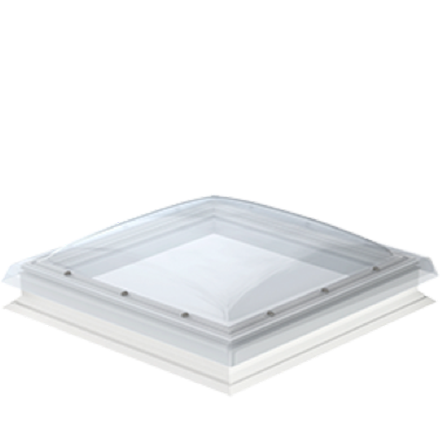

Flat Roof Skylights

Directly mounted to the roof with a PVC curb for greater energy efficiency. The flat roof skylight is a dual glazed unit with protective cover for ice and water shed.

Sun Tunnel Skylights

Light captured on roof, travels through highly reflective tunnel and dispersed in room. Sun tunnels capture abundant daylight without a view.

Options & Hardware

Bring out your imagination

Transform your skylight windows to your liking with our variety of sizing options, robust flashing systems, and innovative blind colours.

Solar Powered Skylight Sizing

Size Code C01

Finished Framing - 21" x 26 7/8"
Outside Frame- 21 1/2" x 27 3/8"

Size Code C04

Finished Framing - 21" x 37 7/8"
Outside Frame- 21 1/2" x 38 3/8"

Size Code C06

Finished Framing - 21" x 45 3/4"
Outside Frame- 21 1/2" x 46 1/4"

Size Code C08

Finished Framing - 21" x 54 7/16"
Outside Frame- 21 1/2" x 54 15/16"

Size Code M02

Finished Framing - 30 1/16" x 30"
Outside Frame- 30 9/16" x 30 1/2"

Size Code M04

Finished Framing - 30 1/16" x 37 7/8"
Outside Frame- 30 9/16" x 38 3/8"

Size Code M06

Finished Framing - 30 1/16" x 45 3/4"
Outside Frame- 30 9/16" x 46 1/4"

Size Code M08

Finished Framing - 30 1/16" x 54 7/16"
Outside Frame- 30 9/16" x 54 15/16"

Size Code S01

Finished Framing - 44 1/4" x 26 7/8"
Outside Frame- 44 3/4" x 27 3/8"

Size Code S06

Finished Framing - 44 1/4" x 45 3/4"
Outside Frame- 44 3/4" x 46 1/4"

Electric Venting Skylight Sizing

Size Code C01

Finished Framing - 21" x 26 7/8"
Outside Frame- 21 1/2" x 27 3/8"

Size Code C04

Finished Framing - 21" x 37 7/8"
Outside Frame- 21 1/2" x 38 3/8"

Size Code C06

Finished Framing - 21" x 45 3/4"
Outside Frame- 21 1/2" x 46 1/4"

Size Code C08

Finished Framing - 21" x 54 7/16"
Outside Frame- 21 1/2" x 54 15/16"

Size Code M04

Finished Framing - 30 1/16" x 37 7/8"
Outside Frame- 30 9/16" x 38 3/8"

Size Code M06

Finished Framing - 30 1/16" x 45 3/4"
Outside Frame- 30 9/16" x 46 1/4"

Size Code M08

Finished Framing - 30 1/16" x 54 7/16"
Outside Frame- 30 9/16" x 54 15/16"

Size Code S01

Finished Framing - 44 1/4" x 26 7/8"
Outside Frame- 44 3/4" x 27 3/8"

Size Code S06

Finished Framing - 44 1/4" x 45 3/4"
Outside Frame- 44 3/4" x 46 1/4"

Manual Venting Skylight Sizing

Size Code C01

Finished Framing - 21" x 26 7/8"
Outside Frame- 21 1/2" x 27 3/8"

Size Code C04

Finished Framing - 21" x 37 7/8"
Outside Frame- 21 1/2" x 38 3/8"

Size Code C06

Finished Framing - 21" x 45 3/4"
Outside Frame- 21 1/2" x 46 1/4"

Size Code C08

Finished Framing - 21" x 54 7/16"
Outside Frame- 21 1/2" x 54 15/16"

Size Code M02

Finished Framing - 30 1/16" x 30"
Outside Frame- 30 9/16" x 30 1/2"

Size Code M04

Finished Framing - 30 1/16" x 37 7/8"
Outside Frame- 30 9/16" x 38 3/8"

Size Code M06

Finished Framing - 30 1/16" x 45 3/4"
Outside Frame- 30 9/16" x 46 1/4"

Size Code M08

Finished Framing - 30 1/16" x 54 7/16"
Outside Frame- 30 9/16" x 54 15/16"

Size Code S01

Finished Framing - 44 1/4" x 26 7/8"
Outside Frame- 44 3/4" x 27 3/8"

Size Code S06

Finished Framing - 44 1/4" x 45 3/4"
Outside Frame- 44 3/4" x 46 1/4"

Fixed Skylight Sizing

Size Code A06

Finished Framing - 14 1/2" x 45 3/4"
Outside Frame- 15 1/4" x 46 1/4"

Size Code C01

Finished Framing - 21" x 26 7/8"
Outside Frame- 21 1/2" x 27 3/8"

Size Code C04

Finished Framing - 21" x 37 7/8"
Outside Frame- 21 1/2" x 38 3/8"

Size Code C06

Finished Framing - 21" x 45 3/4"
Outside Frame- 21 1/2" x 46 1/4"

Size Code C08

Finished Framing - 21" x 54 7/16"
Outside Frame- 21 1/2" x 54 15/16"

Size Code C12

Finished Framing - 21" x 70 1/4"
Outside Frame- 21 1/2" x 70 3/4"

Size Code D26

Finished Framing - 22 1/2" x 22 15/16"
Outside Frame- 23 1/4" x 23 7/16"

Size Code D06

Finished Framing - 22 1/2" x 45 3/4"
Outside Frame- 23 1/4" x 46 1/4"

Size Code M02

Finished Framing - 30 1/16" x 30"
Outside Frame- 30 9/16" x 30 1/2"

Size Code M04

Finished Framing - 30 1/16" x 37 7/8"
Outside Frame- 30 9/16" x 38 3/8"

Size Code M06

Finished Framing - 30 1/16" x 45 3/4"
Outside Frame- 30 9/16" x 46 1/4"

Size Code M08

Finished Framing - 30 1/16" x 54 7/16"
Outside Frame- 30 9/16" x 54 15/16"

Size Code S01

Finished Framing - 44 1/4" x 26 7/8"
Outside Frame- 44 3/4" x 27 3/8"

Size Code S06

Finished Framing - 44 1/4" x 45 3/4"
Outside Frame- 44 3/4" x 46 1/4"

Flashing Options

Step Flashing

3:12 minimum roof pitch

High Profile Flashing

3:12 minimum roof pitch
‍
Not available in Size Code A06

Metal Roof Flashing

3:12 minimum roof pitch

Low Slope Counter Flashing

Less than 3:12 roof pitch. Roofing underlayment not included
‍
Not available in Size Code A06, C12, D26, or D06

Roofing Underlayment

12" x 21'

Glass Options

CleanComfortPlus

Glass Code: 04

Energy i89

Glass Code: 89

Basic Comfort

Glass Code: 05
Only available for Fixed Skylights

Blind Options & Accessories

Room Darkening Blind

A unique double-pleated honeycomb structure that adds an extra layer of fabric to block most incoming light. This blind is an energy-efficient and highly insulated design.

Available in solar powered and manual operation.

Light Filtering Blind

Single pleated fabric softens and diffuses incoming light, helping to prevent glare. This blind provides great privacy and light control.

Available in solar powered and manual operation.

Bettery Backup

Only available for the Electric Venting Skylights.

Blind Colours (Room Darkening Blinds)

White

Standard Blind Colour

Charcoal

Special order only

Golden Beige

Special order only

Beige

Special order only

Blue

Special order only

Grey

Special order only

Grey Melange

Special order only

Light Brown

Special order only

Ivory

Special order only

Orange

Special order only

Dusty Green

Special order only

Light Blue

Special order only

Dark Taupe

Special order only

Dark Sand

Special order only

Light Grey

Special order only

Petrol

Special order only

Blind Colours (Light Filtering Blinds)

White

Standard Blind Colour

Dark Grey

Special order only

Charcoal

Special order only

Classic Sand

Special order only

Beige

Special order only

Blue Jeans

Special order only

Natural

Special order only

Dusty Brown

Special order only

Dusty Sand

Special order only

Red Wine

Special order only

Forest Green

Special order only

Mint Green

Special order only

Dark Grey

Special order only

Light Beige

Special order only

Grey

Special order only

Soft Blue

Special order only

Solar Powered Skylight Sizing

Size Code 2222

Inside Curb - 22 1/2" x 22 1/2"
Outside Curb - 25 1/2" x 25 1/2"
Maximum Clearance - 26 5/8" x 26 5/8"

Size Code 2234

Inside Curb - 22 1/2" x 34 1/2"
Outside Curb - 25 1/2" x 37 1/2"
Maximum Clearance - 26 5/8" x 38 5/8"

Size Code 2246

Inside Curb - 22 1/2" x 46 1/2"
Outside Curb - 25 1/2" x 49 1/2"
Maximum Clearance - 26 5/8" x 50 5/8"

Size Code 3030

Inside Curb - 30 1/2" x 30 1/2"
Outside Curb - 33 1/2" x 33 1/2"
Maximum Clearance - 34 5/8" x 34 5/8"

Size Code 3046

Inside Curb - 30 1/2" x 46 1/2"
Outside Curb - 33 1/2" x 49 1/2"
Maximum Clearance - 34 5/8" x 50 5/8"

Size Code 3434

Inside Curb - 34 1/2" x 34 1/2"
Outside Curb - 37 1/2" x 37 1/2"
Maximum Clearance - 38 5/8" x 38 5/8"

Size Code 4622

Inside Curb - 46 1/2" x 22 1/2"
Outside Curb - 49 1/2" x 25 1/2"
Maximum Clearance - 50 5/8" x 26 5/8"

Size Code 4646

Inside Curb - 46 1/2" x 46 1/2"
Outside Curb - 49 1/2" x 49 1/2"
Maximum Clearance - 50 5/8" x 50 5/8"

Electric Venting Skylight Sizing

Size Code 2222

Inside Curb - 22 1/2" x 22 1/2"
Outside Curb - 25 1/2" x 25 1/2"
Maximum Clearance - 26 5/8" x 26 5/8"

Size Code 2234

Inside Curb - 22 1/2" x 34 1/2"
Outside Curb - 25 1/2" x 37 1/2"
Maximum Clearance - 26 5/8" x 38 5/8"

Size Code 2246

Inside Curb - 22 1/2" x 46 1/2"
Outside Curb - 25 1/2" x 49 1/2"
Maximum Clearance - 26 5/8" x 50 5/8"

Size Code 3030

Inside Curb - 30 1/2" x 30 1/2"
Outside Curb - 33 1/2" x 33 1/2"
Maximum Clearance - 34 5/8" x 34 5/8"

Size Code 3046

Inside Curb - 30 1/2" x 46 1/2"
Outside Curb - 33 1/2" x 49 1/2"
Maximum Clearance - 34 5/8" x 50 5/8"

Size Code 3434

Inside Curb - 34 1/2" x 34 1/2"
Outside Curb - 37 1/2" x 37 1/2"
Maximum Clearance - 38 5/8" x 38 5/8"

Size Code 4646

Inside Curb - 46 1/2" x 46 1/2"
Outside Curb - 49 1/2" x 49 1/2"
Maximum Clearance - 50 5/8" x 50 5/8"

Manual Venting Skylight Sizing

Size Code 2222

Inside Curb - 22 1/2" x 22 1/2"
Outside Curb - 25 1/2" x 25 1/2"
Maximum Clearance - 26 5/8" x 26 5/8"

Size Code 2234

Inside Curb - 22 1/2" x 34 1/2"
Outside Curb - 25 1/2" x 37 1/2"
Maximum Clearance - 26 5/8" x 38 5/8"

Size Code 2246

Inside Curb - 22 1/2" x 46 1/2"
Outside Curb - 25 1/2" x 49 1/2"
Maximum Clearance - 26 5/8" x 50 5/8"

Size Code 3030

Inside Curb - 30 1/2" x 30 1/2"
Outside Curb - 33 1/2" x 33 1/2"
Maximum Clearance - 34 5/8" x 34 5/8"

Size Code 3046

Inside Curb - 30 1/2" x 46 1/2"
Outside Curb - 33 1/2" x 49 1/2"
Maximum Clearance - 34 5/8" x 50 5/8"

Size Code 3434

Inside Curb - 34 1/2" x 34 1/2"
Outside Curb - 37 1/2" x 37 1/2"
Maximum Clearance - 38 5/8" x 38 5/8"

Size Code 4646

Inside Curb - 46 1/2" x 46 1/2"
Outside Curb - 49 1/2" x 49 1/2"
Maximum Clearance - 50 5/8" x 50 5/8"

Fixed Skylight Sizing

Size Code 1430

Inside Curb - 14 1/2" x 30 1/2"
Outside Curb - 17 1/2" x 33 1/2"
Maximum Clearance - 18 5/8" x 34 5/8"

Size Code 3046

Inside Curb - 14 1/2" x 46 1/2"
Outside Curb - 17 1/2" x 49 1/2"
Maximum Clearance - 18 5/8" x 50 5/8"

Size Code 2222

Inside Curb - 22 1/2" x 22 1/2"
Outside Curb - 25 1/2" x 25 1/2"
Maximum Clearance - 26 5/8" x 26 5/8"

Size Code 2230

Inside Curb - 22 1/2" x 30 1/2"
Outside Curb - 25 1/2" x 33 1/2"
Maximum Clearance - 36 5/8" x 34 5/8"

Size Code 2234

Inside Curb - 22 1/2" x 34 1/2"
Outside Curb - 25 1/2" x 37 1/2"
Maximum Clearance - 26 5/8" x 38 5/8"

Size Code 2246

Inside Curb - 22 1/2" x 46 1/2"
Outside Curb - 25 1/2" x 49 1/2"
Maximum Clearance - 26 5/8" x 50 5/8"

Size Code 2270

Inside Curb - 20 1/2" x 70 1/2"
Outside Curb - 25 1/2" x 73 1/2"
Maximum Clearance - 26 5/8" x 74 5/8"

Size Code 3030

Inside Curb - 30 1/2" x 30 1/2"
Outside Curb - 33 1/2" x 33 1/2"
Maximum Clearance - 34 5/8" x 34 5/8"

Size Code 3046

Inside Curb - 30 1/2" x 46 1/2"
Outside Curb - 33 1/2" x 49 1/2"
Maximum Clearance - 34 5/8" x 50 5/8"

Size Code 3434

Inside Curb - 34 1/2" x 34 1/2"
Outside Curb - 37 1/2" x 37 1/2"
Maximum Clearance - 38 5/8" x 38 5/8"

Size Code 3446

Inside Curb - 34 1/2" x 46 1/2"
Outside Curb - 37 1/2" x 49 1/2"
Maximum Clearance - 38 5/8" x 50 5/8"

Size Code 4646

Inside Curb - 46 1/2" x 46 1/2"
Outside Curb - 49 1/2" x 49 1/2"
Maximum Clearance - 50 5/8" x 50 5/8"

Size Code 3055

Inside Curb - 30 1/2" x 54 3/4"
Outside Curb - 33 1/2" x 57 3/4"
Maximum Clearance - 34 5/8" x 59"

Size Code 3072

Inside Curb - 30 1/2" x 72 1/4"
Outside Curb - 33 1/2" x 75 1/4"
Maximum Clearance - 34 5/8" x 76 1/2"

Size Code 4672

Inside Curb - 46 1/2" x 72 1/4"
Outside Curb - 49 1/2" x 75 1/4"
Maximum Clearance - 50 5/8" x 76 1/2"

Flashing Options

Step Flashing

10 - 60 degree roof pitch

High Profile Flashing

14 - 60 degree roof pitch
‍
Not available in Size Code A06

Roofing Underlayment

12" x 21'

Extra Step Pieces

11 pieces
‍
Not available in Size Code A06, C12, D26, or D06

Glass Options

CleanComfortPlus

Glass Code: 04

Energy i89

Glass Code: 89

Basic Comfort

Glass Code: 05C
Only available for Fixed Skylights

Triple-Pane Laminated

Glass Code: 29
Only available for Fixed Skylights

Triple-Pane

Glass Code: 30
Only available for Fixed Skylights

Blind Options & Accessories

Room Darkening Blind

Light Filtering Blind

Single pleated fabric softens and diffuses incoming light, helping to prevent glare. This blind provides great privacy and light control.

Available in solar powered and manual operation.

Bettery Backup

Only available for the Electric Venting Skylights.

Blind Colours (Room Darkening Blinds)

White

Standard Blind Colour

Charcoal

Special order only

Golden Beige

Special order only

Beige

Special order only

Blue

Special order only

Grey

Special order only

Grey Melange

Special order only

Light Brown

Special order only

Ivory

Special order only

Orange

Special order only

Dusty Green

Special order only

Light Blue

Special order only

Dark Taupe

Special order only

Dark Sand

Special order only

Light Grey

Special order only

Petrol

Special order only

Blind Colours (Light Filtering Blinds)

White

Standard Blind Colour

Dark Grey

Special order only

Charcoal

Special order only

Classic Sand

Special order only

Beige

Special order only

Blue Jeans

Special order only

Natural

Special order only

Dusty Brown

Special order only

Dusty Sand

Special order only

Red Wine

Special order only

Forest Green

Special order only

Mint Green

Special order only

Dark Grey

Special order only

Light Beige

Special order only

Grey

Special order only

Soft Blue

Special order only

Flat Roof Sizing Guide

Size Code 6060

Rough Opening - 23 5/8" x 23 5/8"
Exterior Frame - 30 11/16" x 30 11/16"

Size Code 6090

Rough Opening - 23 5/8" x 35 7/16"
Exterior Frame - 30 11/16" x 42 1/2"

Size Code 8080

Rough Opening - 31 1/2" x 31 1/2"
Exterior Frame - 38 9/16" x 38 9/16"

Size Code 9090

Rough Opening - 35 7/16" x 35 7/16" Exterior Frame - 42 1/2" x 42 1/2"

Size Code 90120

Rough Opening - 35 7/16" x 47 1/4"
Exterior Frame - 42 1/2" x 54 5/16"

Size Code 100100

Rough Opening - 39 3/8" x 39 3/8"
Exterior Frame - 46 7/16" x 46 7/16"

Size Code 100150

Rough Opening - 39 3/8" x 59"
Exterior Frame - 46 7/16" x 66 1/8"

Size Code 120120

Rough Opening - 47 1/4" x 47 1/4"
Exterior Frame - 54 5/16" x 54 5/16"

Size Code 150150

Finished Framing - 44 1/4" x 26 7/8"
Outside Frame- 44 3/4" x 27 3/8"

Blind Options & Accessories

Solar Room Darkening Blind

Solar Light Filtering Blind

Single pleated fabric softens and diffuses incoming light, helping to prevent glare. This blind provides great privacy and light control.

Available in solar powered and manual operation.

Curb Base Extension

Sizing - 16 cm or 6.3"

Blind Colours (Room Darkening Blinds)

White

Standard Blind Colour

Charcoal

Special order only

Golden Beige

Special order only

Beige

Special order only

Blue

Special order only

Grey

Special order only

Grey Melange

Special order only

Light Brown

Special order only

Ivory

Special order only

Orange

Special order only

Dusty Green

Special order only

Light Blue

Special order only

Dark Taupe

Special order only

Dark Sand

Special order only

Light Grey

Special order only

Petrol

Special order only

Blind Colours (Light Filtering Blinds)

White

Standard Blind Colour

Dark Grey

Special order only

Charcoal

Special order only

Classic Sand

Special order only

Beige

Special order only

Blue Jeans

Special order only

Natural

Special order only

Dusty Brown

Special order only

Dusty Sand

Special order only

Red Wine

Special order only

Forest Green

Special order only

Mint Green

Special order only

Dark Grey

Special order only

Light Beige

Special order only

Grey

Special order only

Soft Blue

Special order only

Solar Powered Skylight Sizing

Size Code TMR 010

Pitched flashing. Provides the highest light output and is the most versatile and commonly used model.

Diameter - 10"
Tubing Length - 4 ft.
Max. Installation Length - 20 ft.

Size Code TMR 014

Pitched flashing. Provides the highest light output and is the most versatile and commonly used model.

Diameter - 14"
Tubing Length - 4 ft.
Max. Installation Length - 25 ft.

Size Code TGR 010

Low profile flashing. Provides a lower exterior profile designed for south facing exposures.

Diameter - 10"
Tubing Length - 4 ft.
Max. Installation Length - 20 ft.

Size Code TGR 014

Low profile flashing. Provides a lower exterior profile designed for south facing exposures.

Diameter - 14"
Tubing Length - 4 ft.
Max. Installation Length - 25 ft.

Size Code TGR 022

Low profile flashing. Provides a lower exterior profile designed for south facing exposures.

Diameter - 22"
Tubing Length - 4 ft.
Max. Installation Length - 30 ft.

Size Code TLR 014

Low profile flat glass. Creates a sleek appearance on the roof and is ideal for south facing exposures.

Diameter - 14"
Tubing Length - 4 ft.
Max. Installation Length - 25 ft.

Size Code TCR 014

Flat roof flashing. Designed for flat roofs providing a balanced light output.

Diameter - 14"
Tubing Length - 4 ft.
Max. Installation Length - 25 ft.

Size Code TMF 014

Pitched flashing. Flexible tunnel for attics with many obstructions.

Diameter - 14"
Tubing Length - 8 ft.
Max. Installation Length - 8 ft.

Size Code TGF 014

Low profile flashing. Flexible tunnel for attics with many obstructions and south facing exposures.

Diameter - 14"
Tubing Length - 8 ft.
Max. Installation Length - 8 ft.

Size Code TGF 022

Low profile flashing. Flexible tunnel for attics with many obstructions and south facing exposures.

Diameter - 14"
Tubing Length - 8 ft.
Max. Installation Length - 12 ft.

Lighting & Energy Efficiency Upgrades

Electric Night Light Kit

Allows you to use the Sun Tunnel skylight as
a night time light source. Compatible with
26 watt CFL and LED bulbs. Available for
all models.

Universal Solar Powered Night Light

Provides constant low level light when the
sun sets. Ensures Sun Tunnels provide light all
day everyday. Available for Rigid Sun Tunnels.

Energy Kit

Contains a clear lower tunnel cap that
increases the energy efficiency of the
daylighting system, provides multiple layers
of protection and increases the quality
of the light diffusion within living spaces.

Decorative Diffuser Options

Micro Fresnel

Triple Wave

Brushed Metal

Prismatic

Bubbles

Neutral Light

Converts daylight to appear more like a
traditional household light bulb with a warm
yellow bias.

Optional Accessories

Rigid Tunnel Extension
‍

Rigid extension pieces for longer tunnel runs.
Comes in 2 foot extensions, purchased as 2',
4', 6' or 12'. Available for 10" and 14" models.

Elbow Accessory

A durable and easy to operate double gore
elbow that can be used to manoeuvre
around obstacles.

Turret Extender

Available for 14" and 22" models.

Rotating Coupler

Rotating coupler is required to join two elbows together

Gallery

See it for yourself

See the difference that Durabuilt Windows & Doors can make in your home. Browse our collection of skylight photos and get inspired!

Warranty

With every purchase

Your house is so much more than just walls and a roof, and we promise to help you protect it after your installation is complete. To learn more about our product warranty, press the button below!
